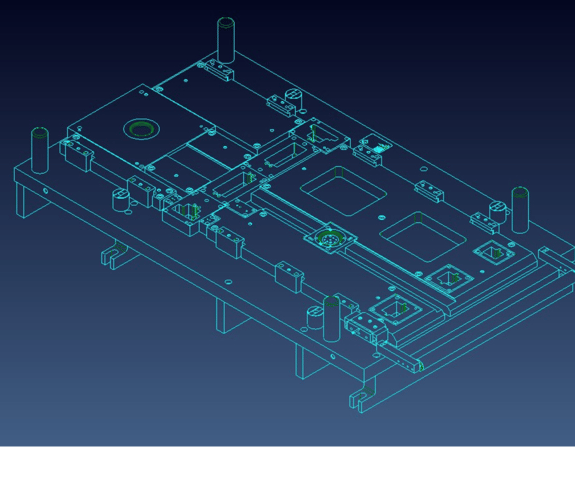

![Design of a die](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Design.png)
Design – Stamping Dies & Custom Tooling
Whether you already have a part design or need guidance on your blank slate, MAINWAY’s design team can help. Our in-house designers will directly engage your team to increase efficiencies and ensure the most manufacturable part possible.
![Die build Die build](https://www.mainway.com/hubfs/Screen%20Shot%202022-08-02%20at%202.13.09%20PM-1.png)
Ready-to-Run Stamping Dies Start With a Solid Design
There’s more than meets the eye when it comes to design – part manufacturability, tooling, and production considerations matter. With nearly 45 years of experience, MAINWAY offers a deep understanding of:
- Progressive dies
- Line dies
- Draw dies
- Deep draw dies
- Transfer stamping dies
- Hand transfer dies
- Compound blank
- Fine blanking
Based on your part’s application, metal type, and specific manufacturing process, we may provide additional insights and recommendations for the part or die design. You’ll move confidently into production with a final tool design, strip layouts, and bill of materials.
Our Approach | Stamping Die Design
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
Sustained quality and a stable partner is a dire need in many markets, such as automotive, appliance, military, trucking, construction, and agriculture. The experience-rich and versatile MAINWAY team excels with any type of machine design.
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
There’s a lot at stake when your new program needs to last a decade-plus. We’ll make you a complex, quick-turn prototype so accurate, you can’t tell it’s a prototype. We test and certify dies in-house, and provide QA and PPAP approval.
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
Unlike other stamping shops and design facilities, we keep virtually all services in-house – from design to finished part. This approach helps you control the lead time and quality of your custom metal stamping dies.
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
Because we’re also stamping experts, we can predict your tooling’s performance in the production stage and parlay that into a successful part. For those seeking turnkey solutions, we offer a full production stamping facility, die fabrication, value-added services, and die repair.
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
Say you need a great progressive die design … are you satisfied only talking to a sales rep? At MAINWAY, we put our entire project team within your reach, with designers and fabricators proactively communicating milestones and recommendations.
![Slice 1 - 2023-07-25T110717.621](https://9477176.fs1.hubspotusercontent-na1.net/hubfs/9477176/Slice%201%20-%202023-07-25T110717.621.png)
Sustained quality and a stable partner is a dire need in many markets, such as automotive, appliance, military, trucking, construction, and agriculture. The experience-rich and versatile MAINWAY team excels with any type of machine design.
You + MAINWAY
We pore over your die design requirements and tolerances to spot design-for-manufacturability issues and opportunities you may have overlooked. Examples include: material impact on radius achievability, narrowing a side to reduce scrap, accounting for springback, tool cost vs. part production cost, and material yield.
We also review your specific manufacturing process to ensure an efficient production line. Topics of scrutiny include: feed, press type, press specs, and post-stamping operations. Both sides continue sharing drawings, with progress reports coming at mutually determined intervals.
We check every box to ensure your die or stamped part design is ready to enter the fabrication stage. This includes on-site technical support and program management, if necessary.
